GPSMAP 8612xsv with Mapping and Sonar Garmin 010-02092-51

Demanding anglers, cruisers, and sailors, whether for leisure or racing, want reliable, high-quality equipment.

This easy-to-install, easy-to-use chartplotter/sonar combo delivers the performance of a multifunction display in a compact format.

• Enjoy wider viewing angles and superior clarity on the IPS full HD touchscreen
• Navigate with confidence using built-in Garmin Navionics+™ coastal and inland charts
• Easily build out your marine system with best-in-class network connectivity
• See what’s below and around your boat with built-in sonar capability (transducers sold separately)
• From ANT® technology to Wi-Fi® networking, the connection possibilities are endless
• With SmartMode™ station controls, everything is designed to give you fast, direct access to the information you need

IPS HD touchscreen

This display offers wider viewing angles, superior clarity, and improved sunlight readability, even when wearing polarized sunglasses.

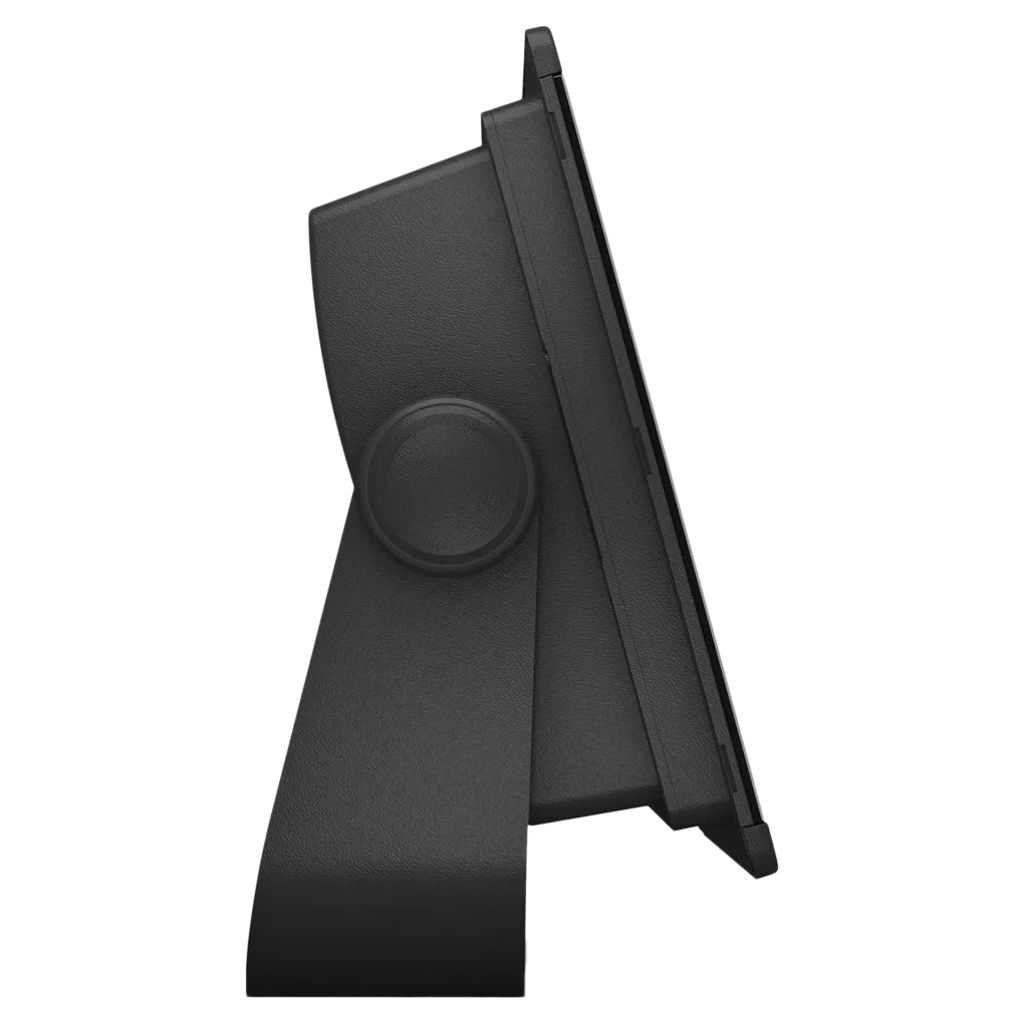

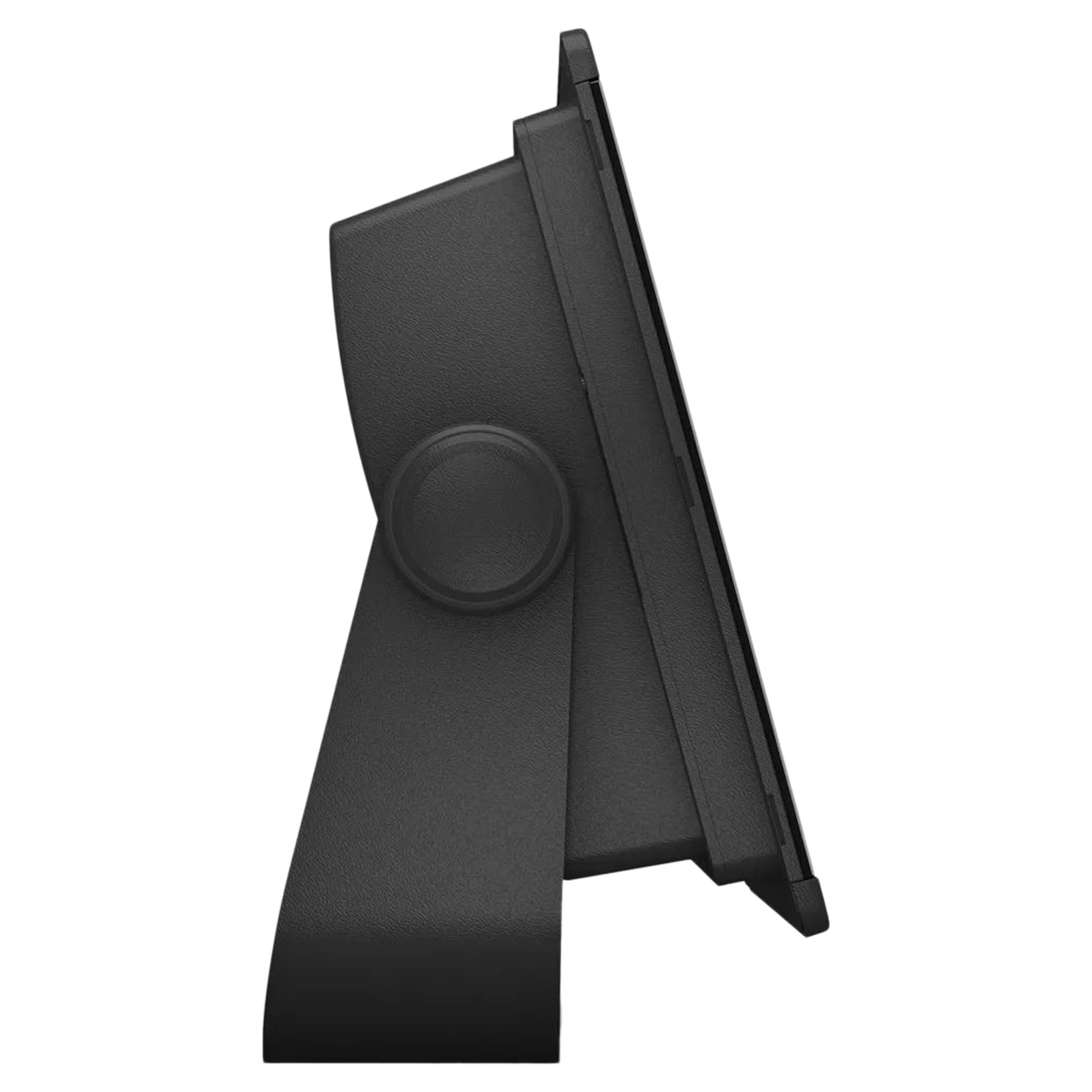

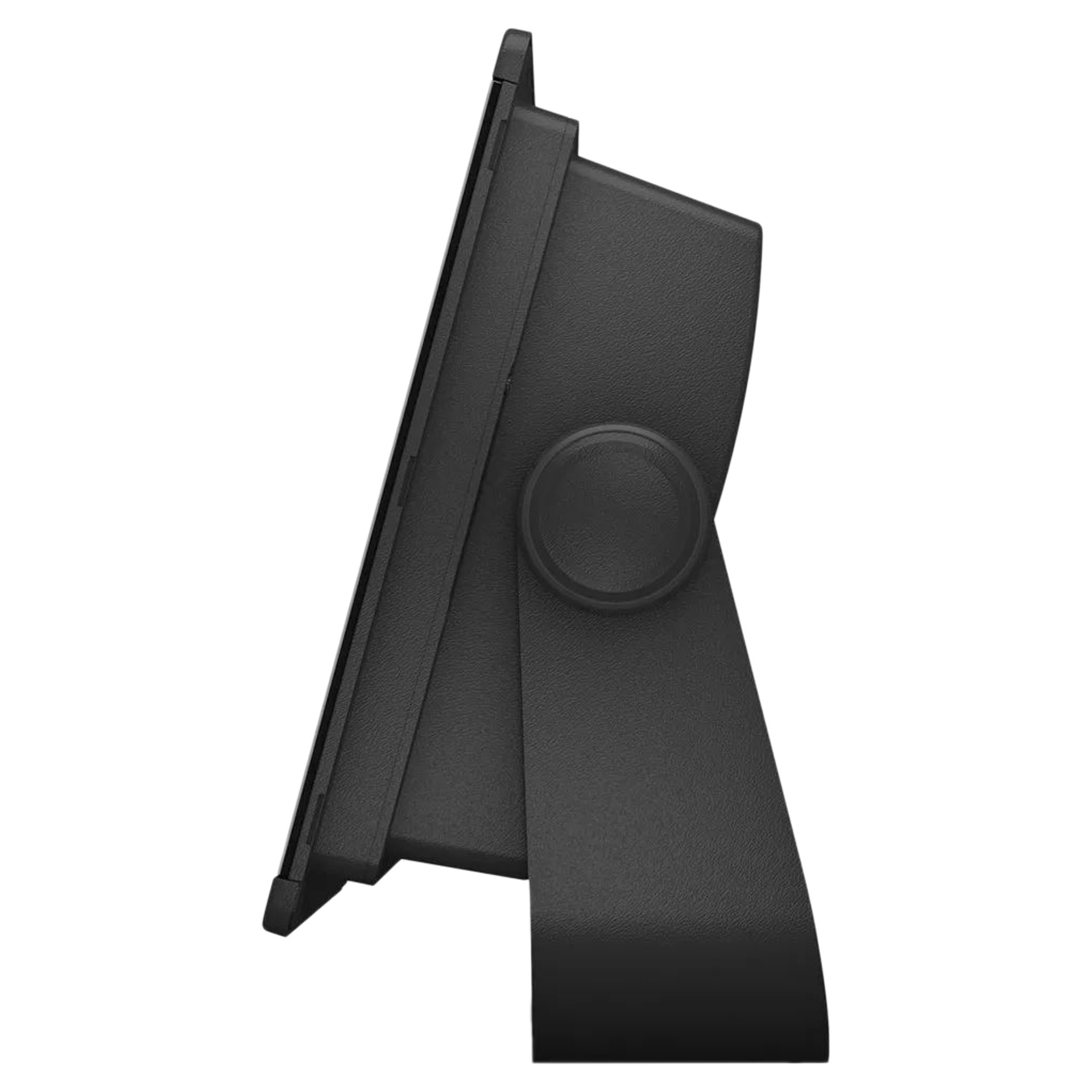

Simple, attractive mounting options

Install multiple screens side-by-side for a sleek glass-helm look, or flush-mount them to create an impressive helm layout.

GRID™ 20 remote control

The optional GRID 20 remote is easy to use and gives you full control of your entire Garmin marine system.

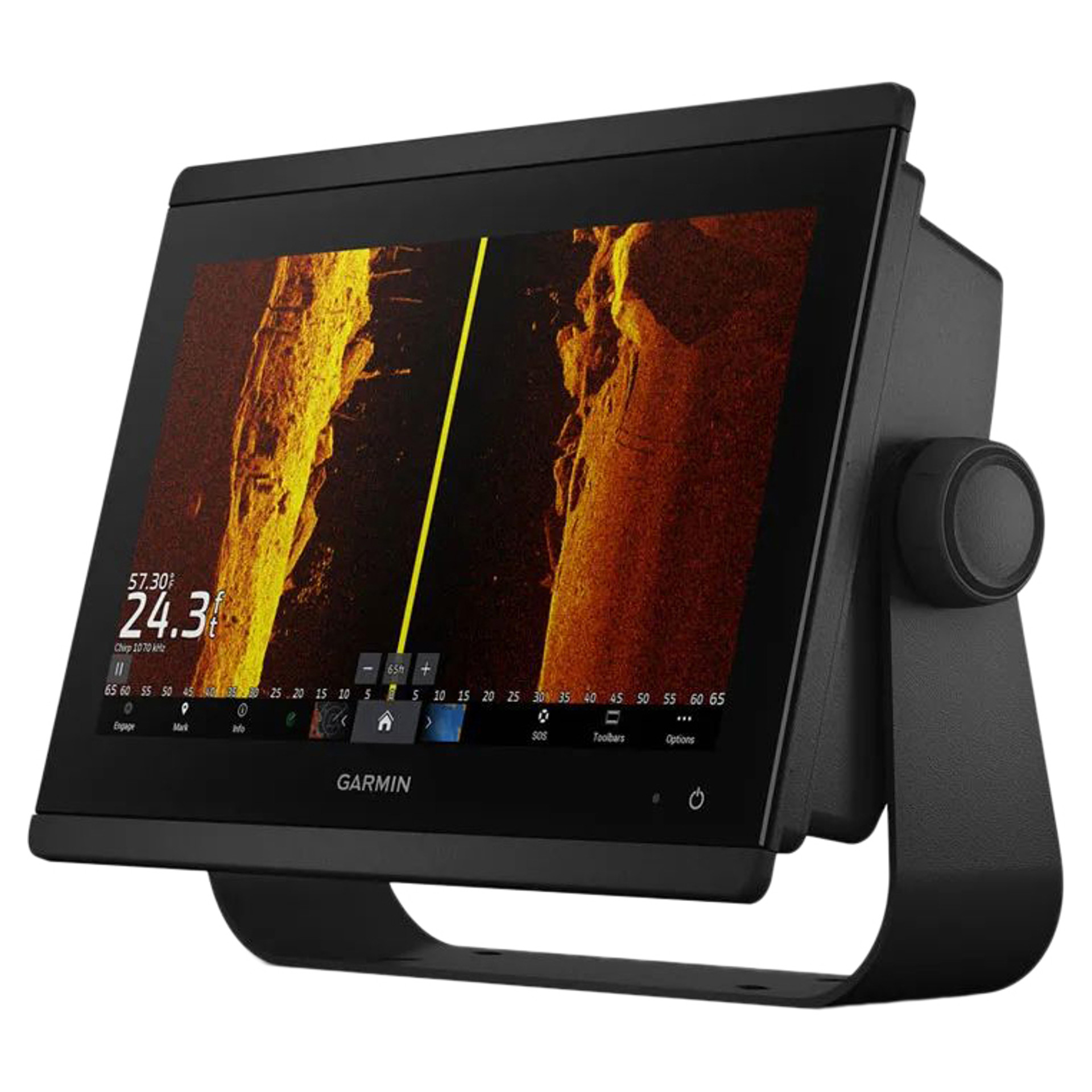

Traditional and scanning sonar support

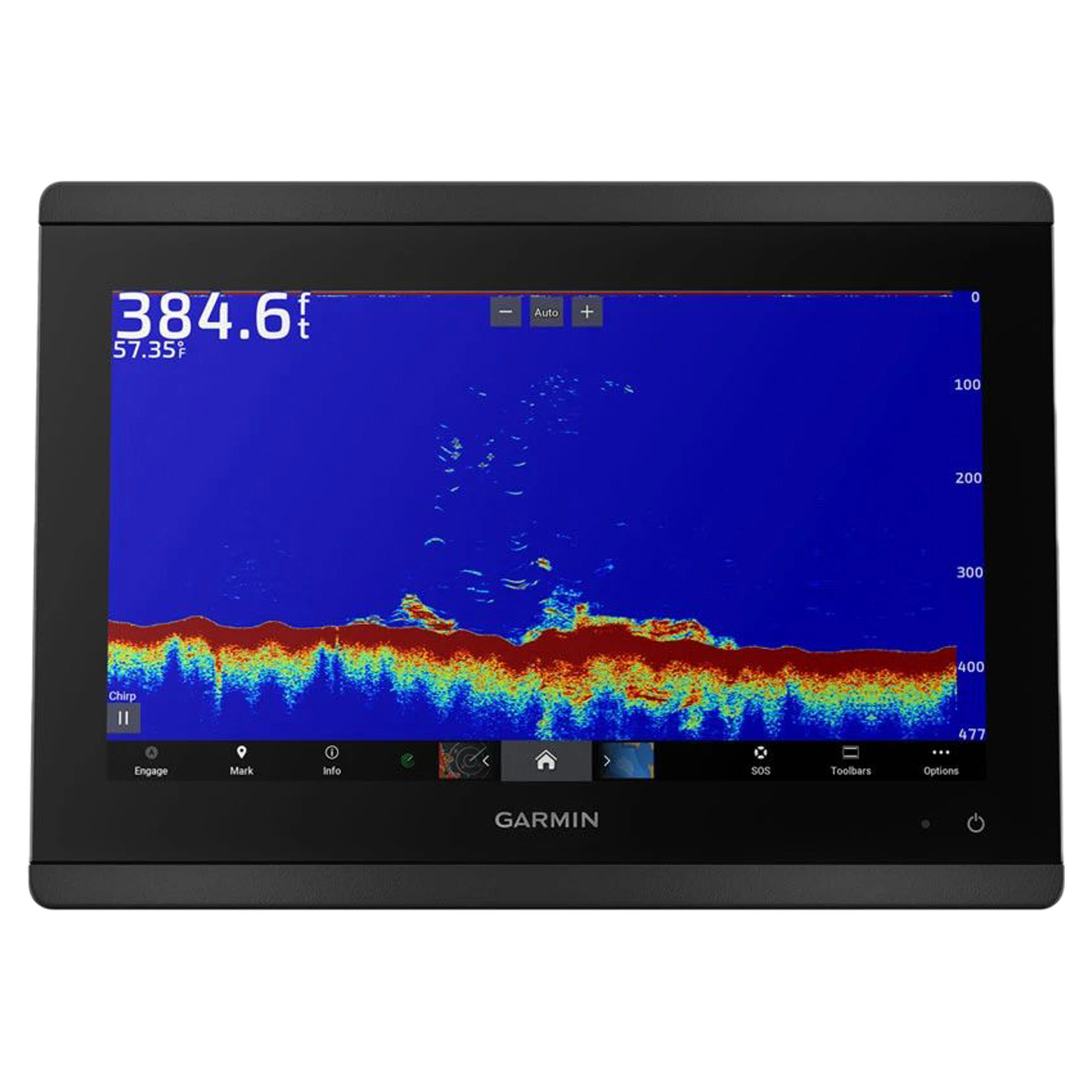

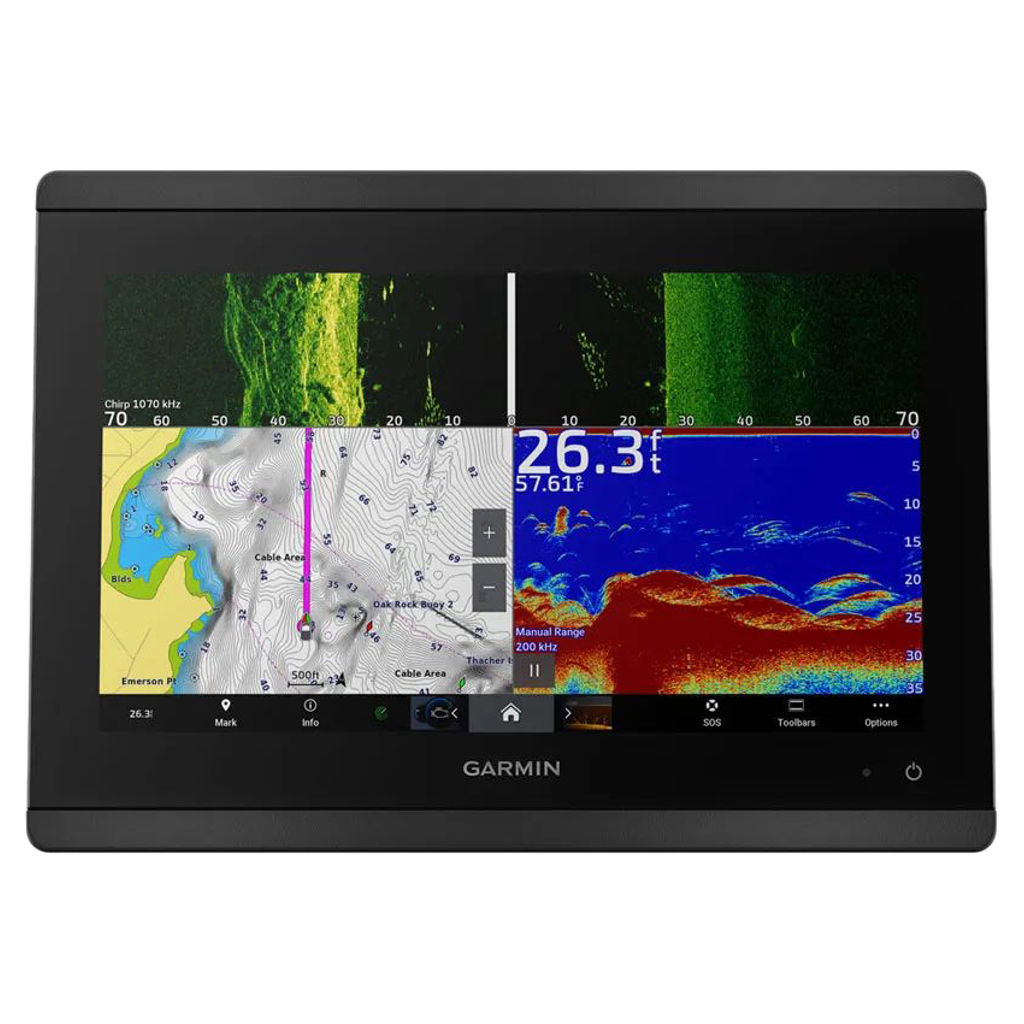

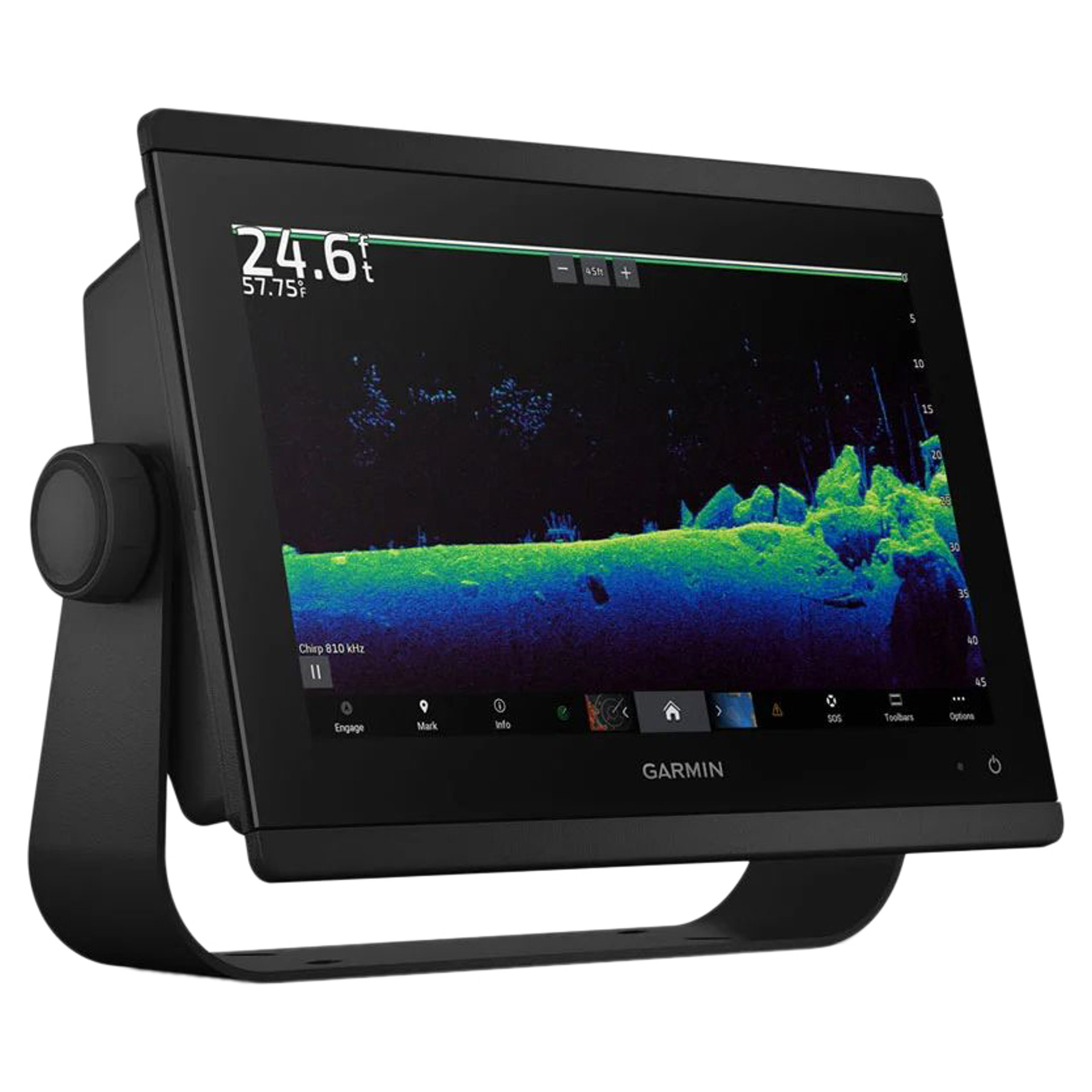

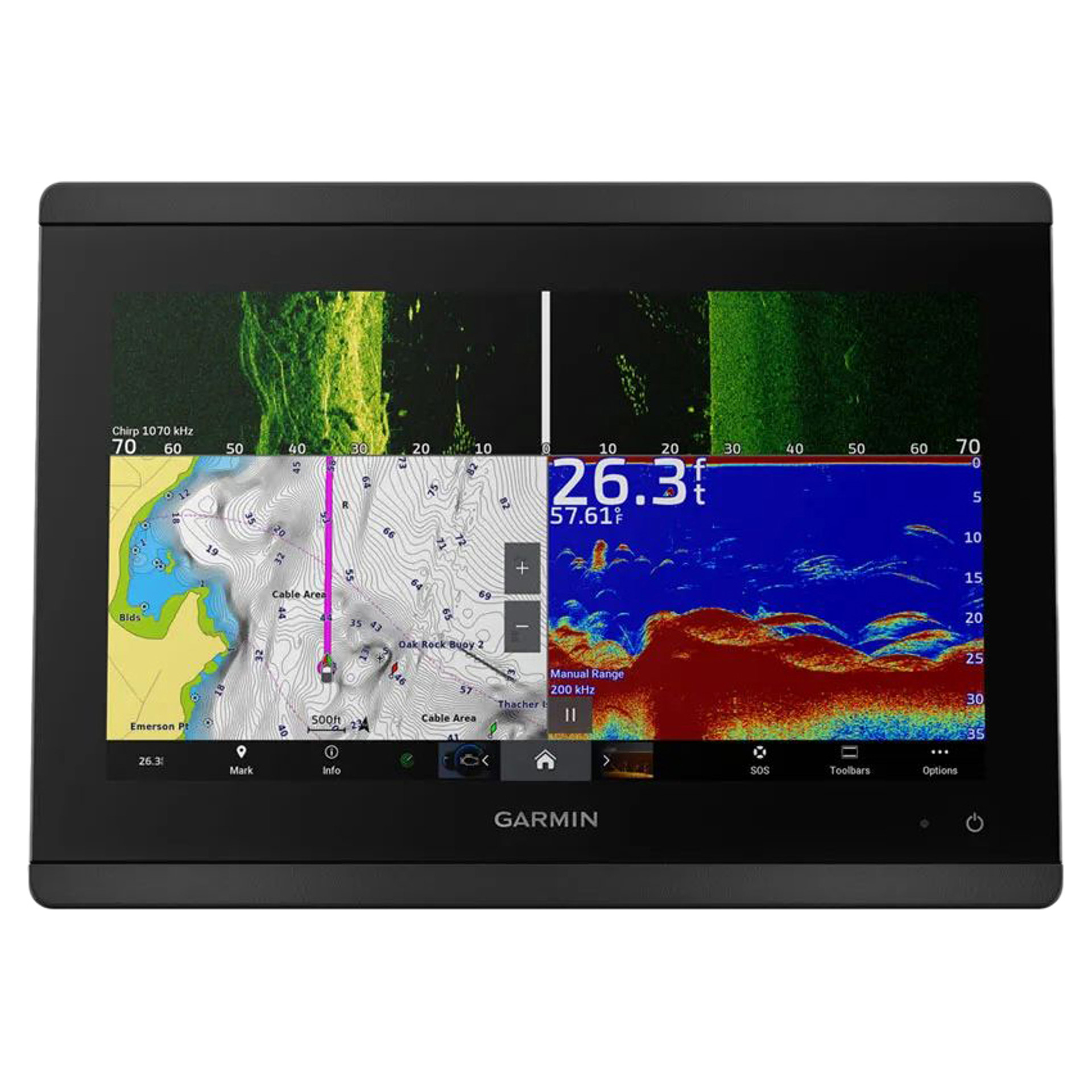

Take advantage of built-in support for 1 kW dual-channel CHIRP sonar for excellent target separation, plus ClearVü and SideVü scanning sonar to see up to 304 m (1,000 ft) below and around your boat at 260 kHz (transducer sold separately). Built-in sonar compatibility applies to xsv models only.

Panoptix™ sonar support

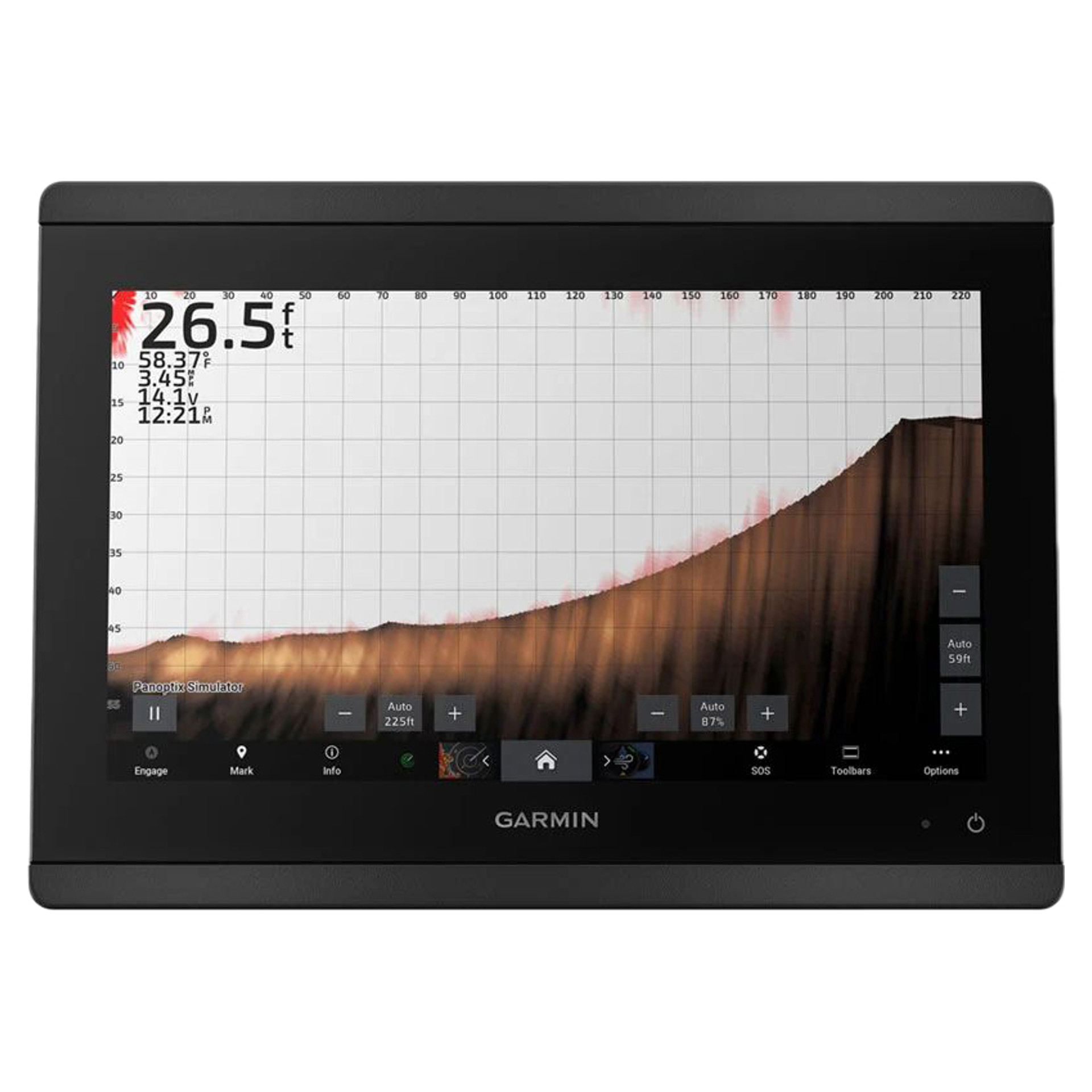

Pair your chartplotter with Panoptix or Panoptix LiveScope™ real-time sonar (transducer sold separately) to see all around your boat as it happens.

Garmin SailAssist™ features

Display laylines, starting-line guidance, an optimized wind rose, course-over-ground lines, true-wind data fields, tide/current sliders, wind angle, heading and drift, wind speed, polar charts, and more.

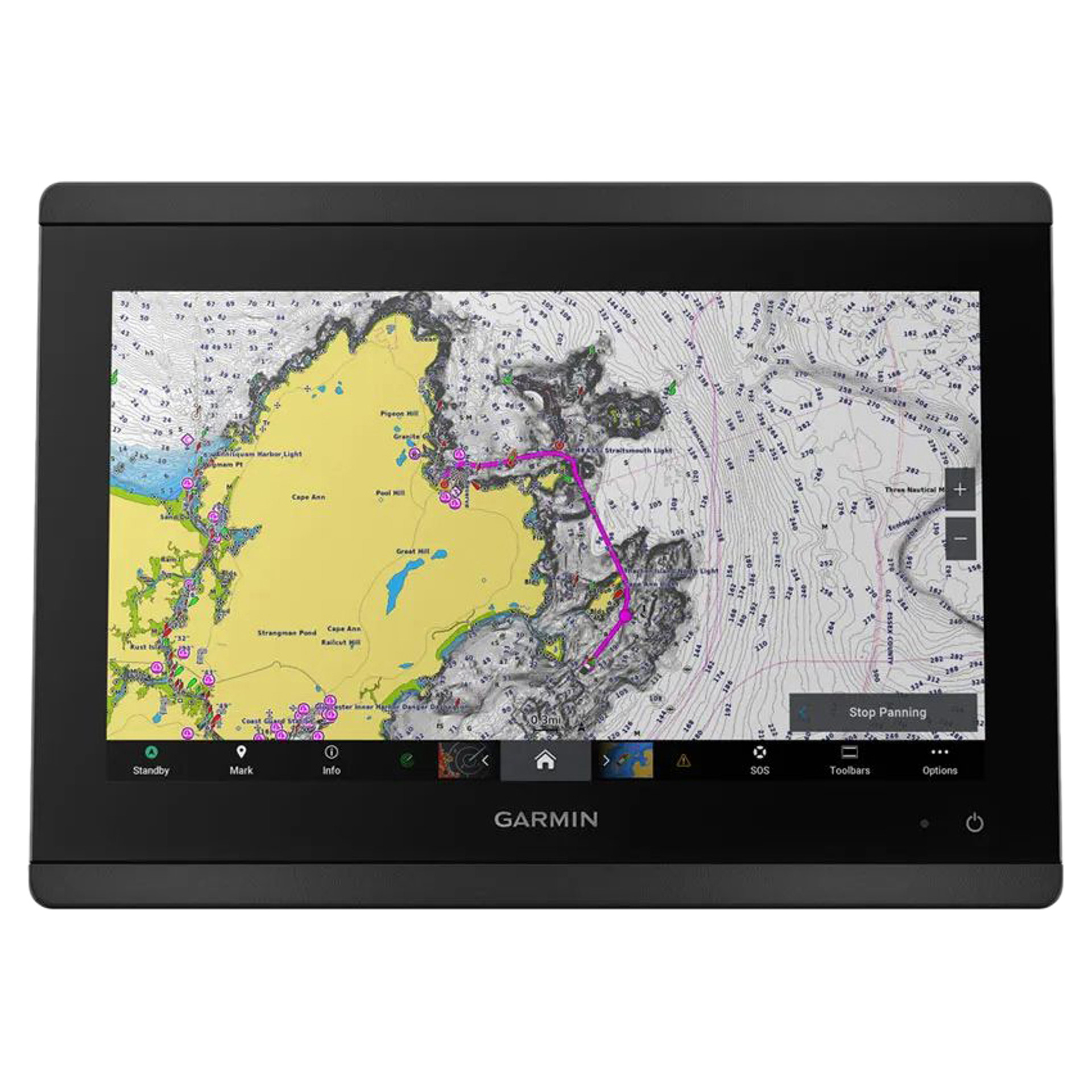

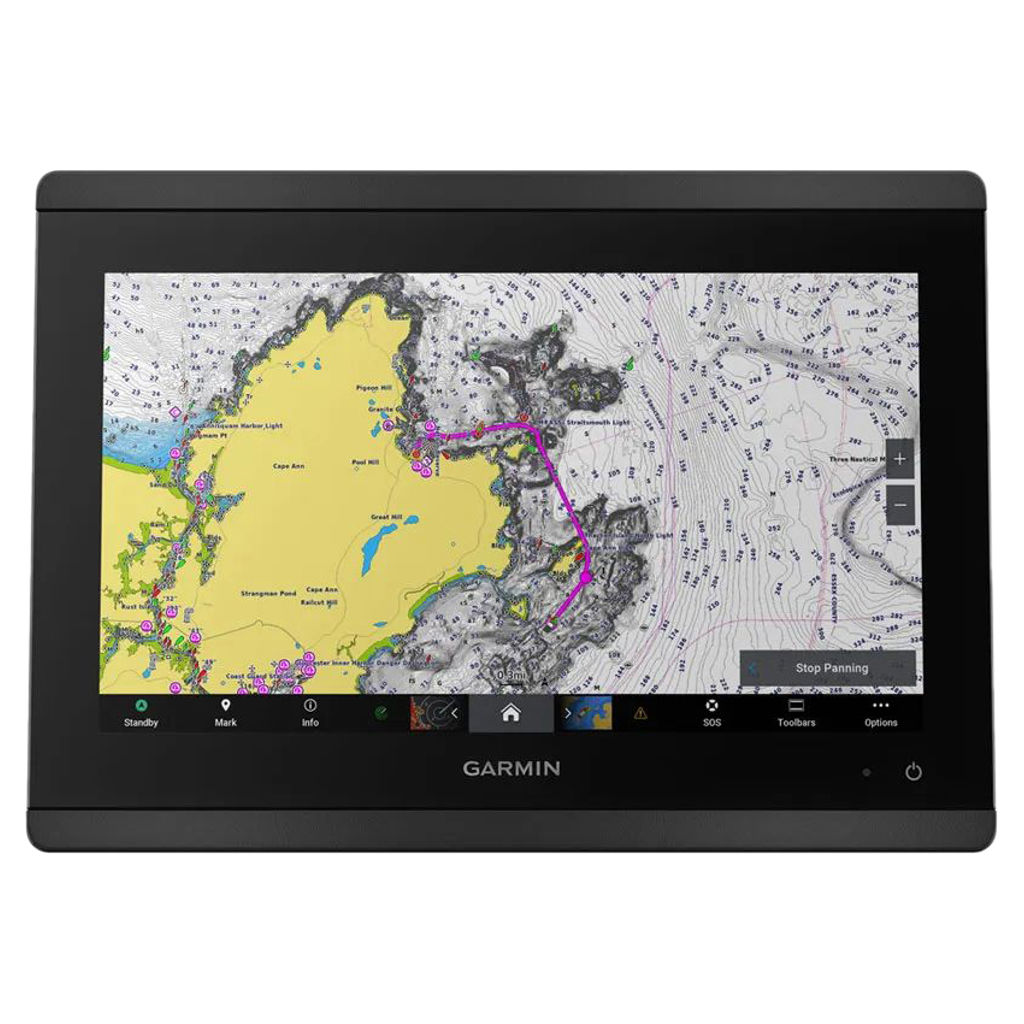

Preloaded mapping

Enjoy unmatched coverage and detail with built-in Garmin Navionics+™ coastal and inland mapping, including Auto Guidance+™2 technology and a 1-year subscription for updates and additional downloads on select chartplotters.

Optional marine charts

Upgrade to a Garmin Navionics Vision+™ premium subscription for high-resolution shading, satellite imagery, downloadable sonar imagery, and more.

Sailing polars

Consult sailing polar tables to understand optimal speed at specific wind angles and speeds, so you can fine-tune your sail trim.

Garmin Marine Network

If your boat has multiple Garmin devices, you can share charts, user data, radar imagery, IP camera feeds, and more.

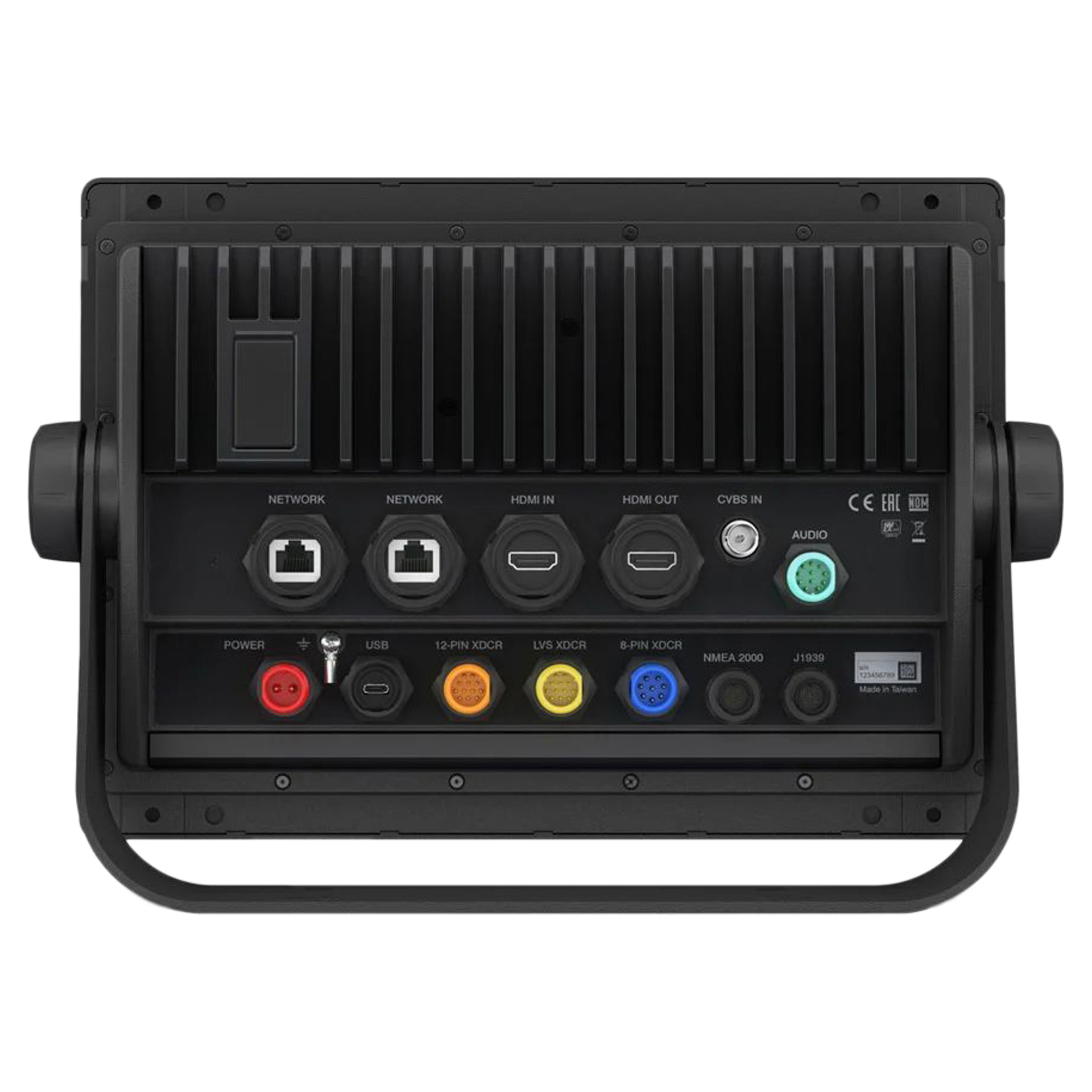

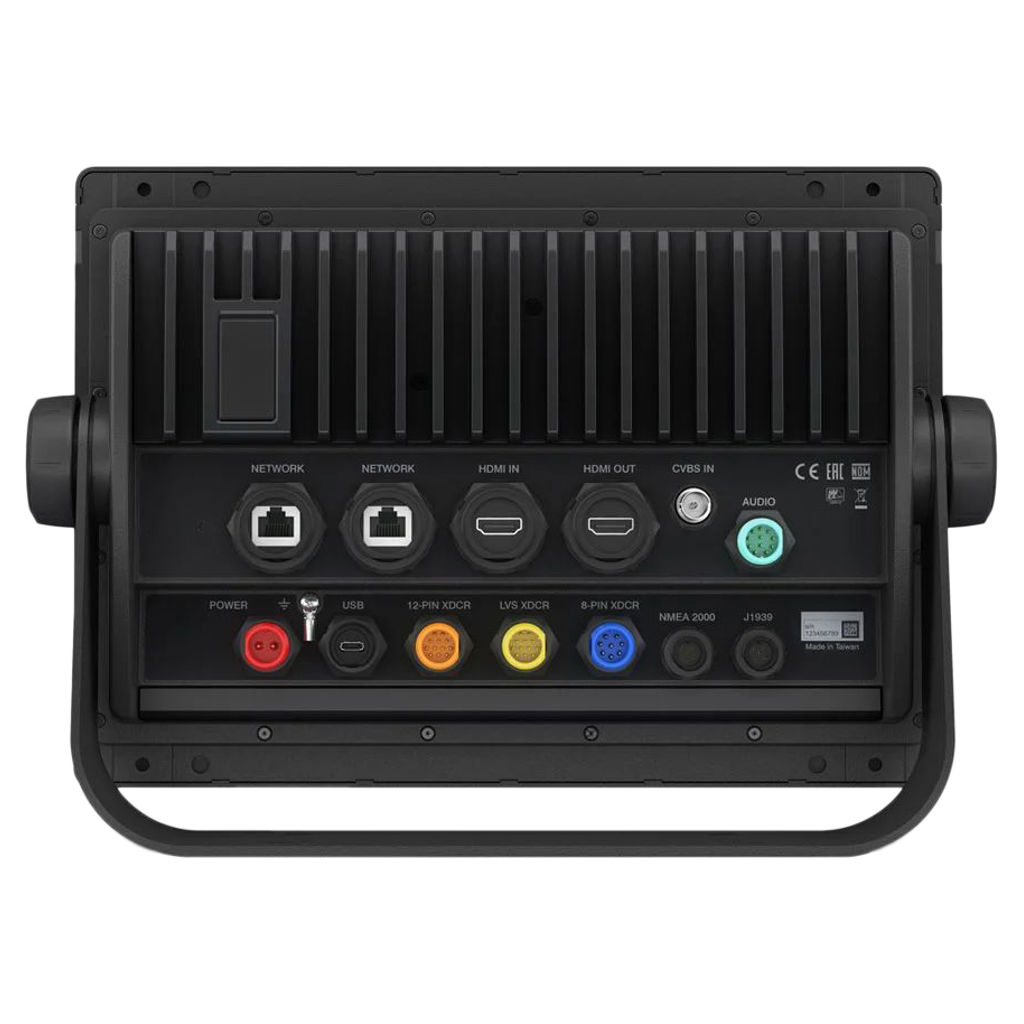

NMEA 2000 and NMEA 0183 networks

Connect to your autopilot, digital switching, weather system, FUSION-Link™ audio system, VHF, AIS, and more  all on one display.

Integrated Bluetooth and ANT technologies

Connect to compatible favorites such as quatix® marine watches, gWind™ Wireless 2 sensors, GNX™ Wind instruments, and wireless remotes.

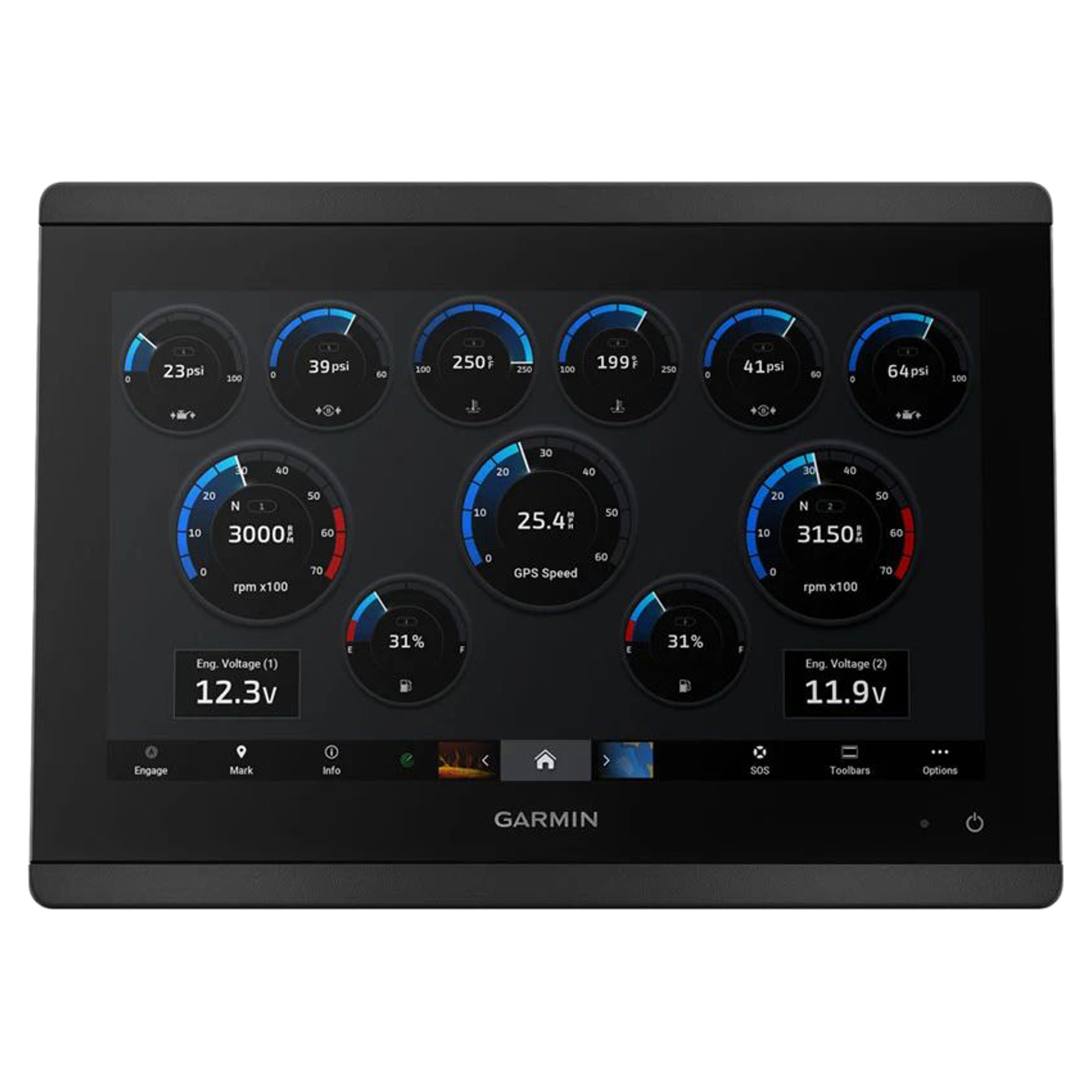

SmartMode™ Station Controls

Get fast, direct access to the information you need when handling stressful situations like docking. Integrate sonar, radar, cameras, networked media, and much more, all at your fingertips.
