30" Custom Hood Liner 400 CFM KitchenAid UVL5430JSS

SKU: 0732881

$1 099.99

1 Special offer(s) available

close

How to benefit



Purchase options
  • Free delivery* Available between October 3 and October 8
  • Quebec Distribution Center
    Pick up not available See in store unavailable
Compare product
Wishlists Wishlists
Add to my wishlist
close

In-store availability


Description

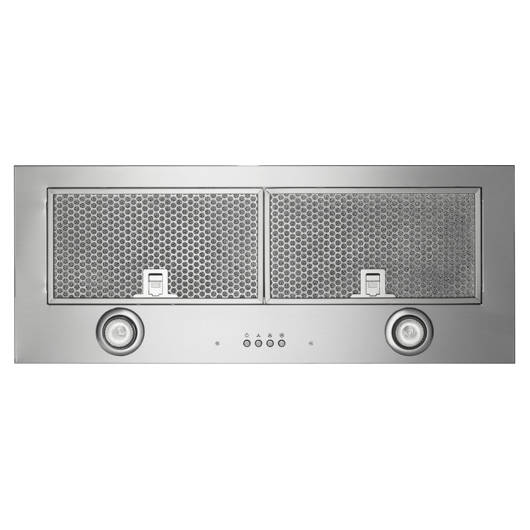

This 30-inch insert range hood is designed to conceal the ventilation system inside a custom cabinet or decorative hood enclosure. Its 400 CFM blower, three fan speeds, and push-button controls provide effective, discreet ventilation for use with a conventional range or cooktop.

400 CFM Ventilation

The centrifugal blower delivers up to 400 CFM of airflow to help capture grease, steam, and cooking odors. It provides the ventilation power needed for everyday residential cooking while remaining hidden inside your custom enclosure.

Three Fan Speeds

Low, medium, and high fan speed settings allow you to adjust ventilation to suit your cooking needs. The low setting is ideal for gentle simmering, while the higher speeds provide increased airflow for cooking methods that produce more smoke or steam.

Custom Built-In Design

Designed for installation inside a custom cabinet or decorative hood, this insert creates a seamless, integrated look that complements your kitchen cabinetry. Only the functional underside remains visible, providing greater design flexibility.

Dual LED Lighting

Two LED lights provide natural illumination across the entire cooking surface. Two brightness levels let you choose between bright task lighting for meal preparation or softer ambient lighting for the kitchen.

Removable Grease Filters

Multi-layer grease filters help capture grease particles, steam, and cooking odors generated during high-heat cooking. They can be removed and cleaned with soap and water for easy routine maintenance.

Concealed Controls

Discreet push-button controls preserve the clean appearance of the installation while providing direct access to the three fan speeds and lighting settings.

Ducted or Recirculating Installation

The insert can be vented outdoors through a 6-inch round vertical duct. It can also be configured for recirculating operation using the compatible recirculation kit, sold separately, providing greater installation flexibility.

Features

  • 30-inch stainless steel insert range hood
  • Designed to be concealed inside a custom cabinet or decorative hood
  • Centrifugal blower with up to 400 CFM of airflow
  • Three fan speeds: low, medium, and high
  • Concealed push-button controls
  • Two LED lights with two brightness levels
  • Removable multi-layer grease filters, washable with soap and water
  • Backdraft damper included
  • Convertible for ducted or recirculating installation
  • Top outlet for a 6-inch round duct

Electrical Requirements

  • Power supply: 120 V, 60 Hz
  • Current: 2.1 A
  • Total power: 253 W
  • Power cord included

Manufacturer's plan

Specifications
  • Model features
    • Door colour : Stainless Steel
    • Outer finish : Stainless Steel
    • Hood type : Built-in
    • Surface Width : 30 in
  • Performances/functions
    • Motor : Internal
    • Power (CFM) : 400
    • Vent Power : 0 - 400 CFM
    • Number of speeds : 3 speeds
  • Filter
    • Filter Type : Micromesh
    • Carbon filter option : Yes
  • Miscellaneous/features
    • Lighting Type : LED
    • Heating Lamp : No
  • Colors and shades
    • Main Finish : Stainless Steel
Dimensions
  • Packed (in Inches)
    • Length : 15 1/2
    • Depth : 33
    • Height : 16 1/4

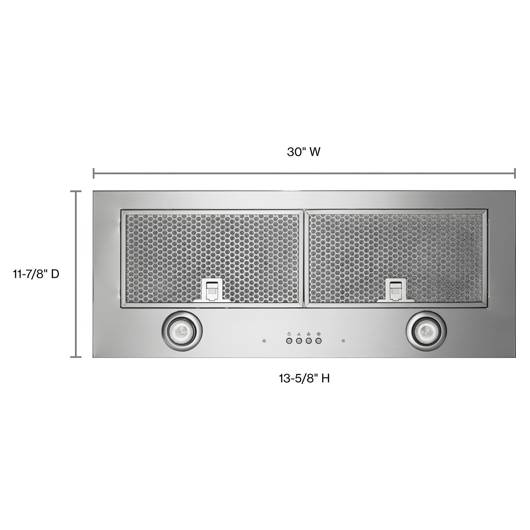

  • Unpacked (in Inches)
    • Length : 30
    • Depth : 12
    • Height : 13 3/4

Approximate size. For more information, please contact our customer service.



30" Custom Hood Liner 400 CFM
KitchenAid
SKU: 0732881
