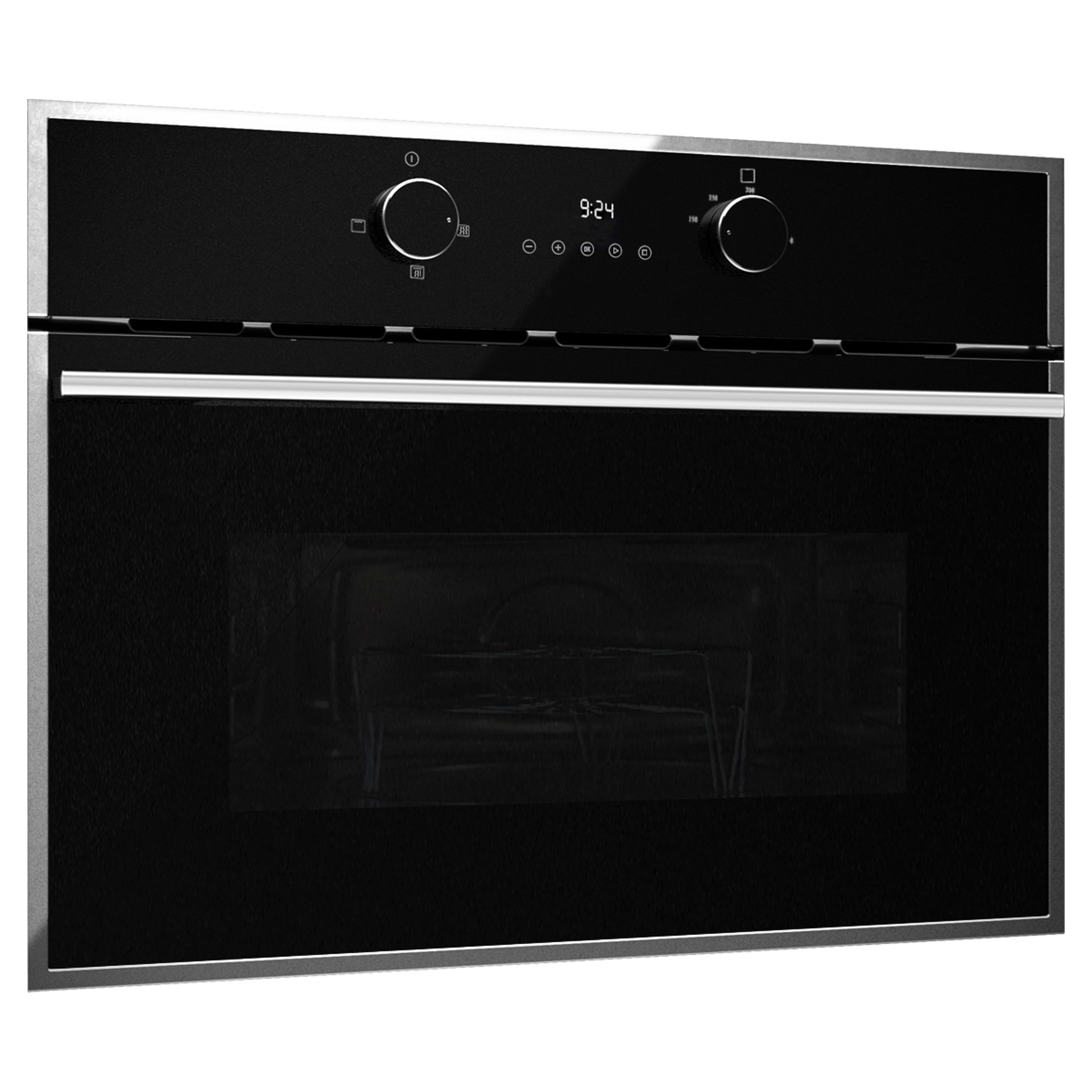

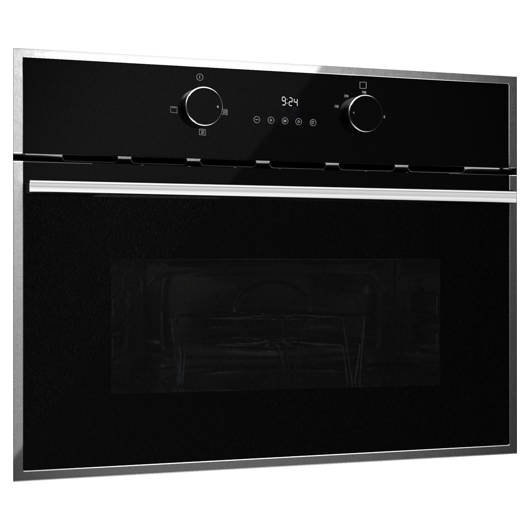

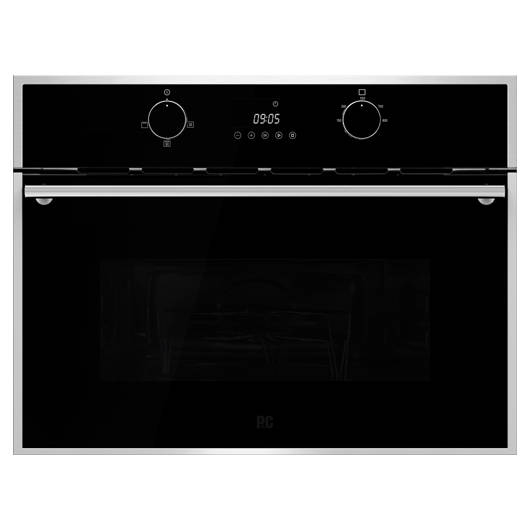

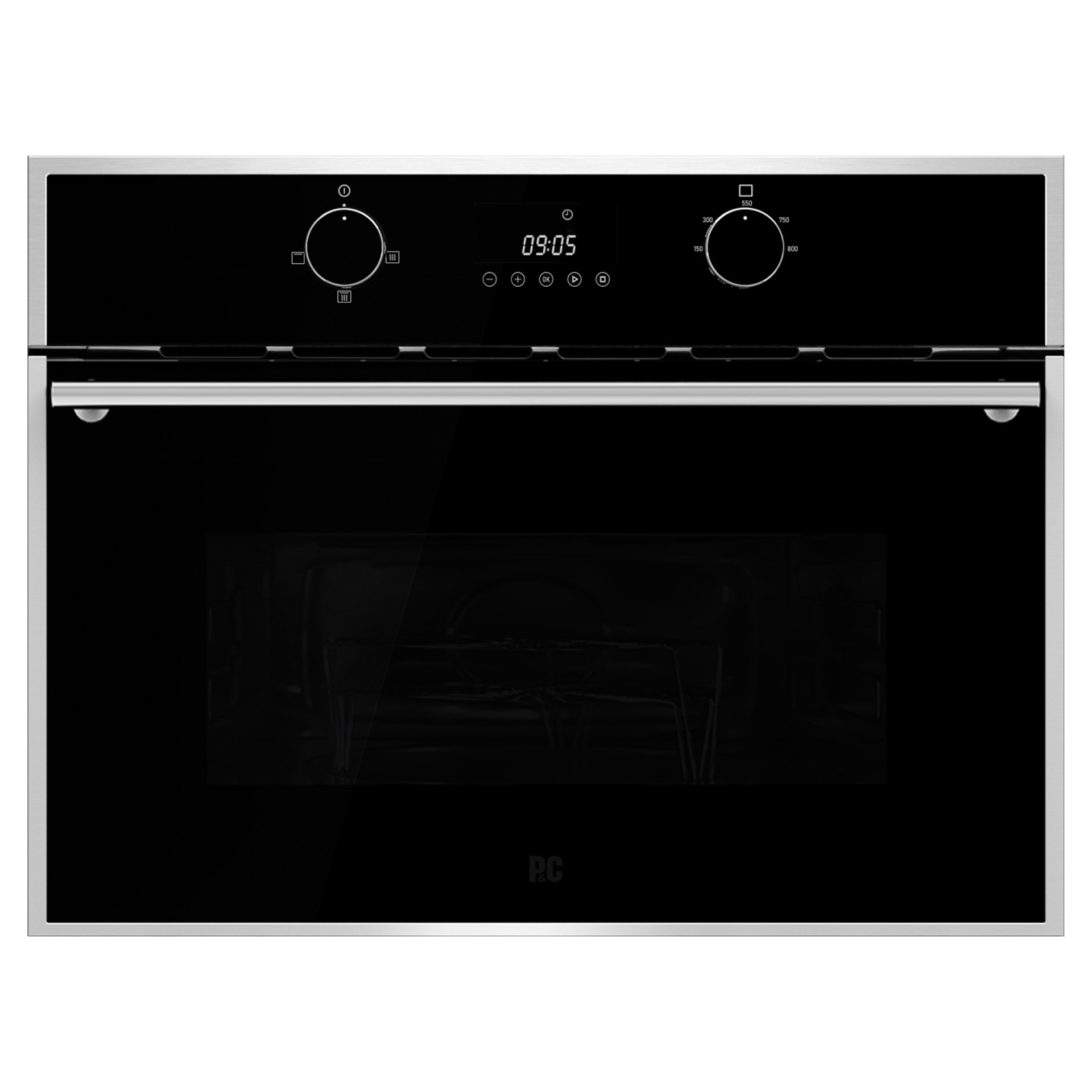

1.34 cu. ft. Built-In Microwave Oven - 1000 W Porter & Charles MWPS60TM-1

24 in Compact Built-In Microwave with Grill

The Porter & Charles MWPS60TM-1 built-in microwave combines the speed of microwave cooking with the versatility of an integrated grill. With a 1.3 cu. ft. capacity and 1,000 W of microwave power, it efficiently reheats, cooks and defrosts a wide variety of foods, while the 1,500 W grill lets you brown and gratinate dishes.

Its stainless steel interior makes cleaning easier, while rotary controls combined with a touch interface and digital display provide easy access to functions, cooking times and timer settings. Its compact 24 in built-in design integrates seamlessly into a contemporary kitchen.

Microwave and Grill in One Appliance

Three cooking modes are available: microwave, grill and microwave + grill combination. Combination mode provides the speed of microwave cooking while using the grill to create a more appetizing browned finish.

Power for Different Cooking Needs

• Microwave power: 1,000 W
• Grill power: 1,500 W
• Microwave + grill combination power: 150 to 1,000 W
• Number of cooking functions: 3

Simple, Precise Controls

Two rotary knobs are combined with touch controls and a digital display for easy selection of functions and settings. A fully automatic digital clock and timer also provide precise control over cooking times.

• Rotary and touch controls
• Digital display
• Quick-start function
• Pause function
• Cooking time and end-time control
• Child safety lock

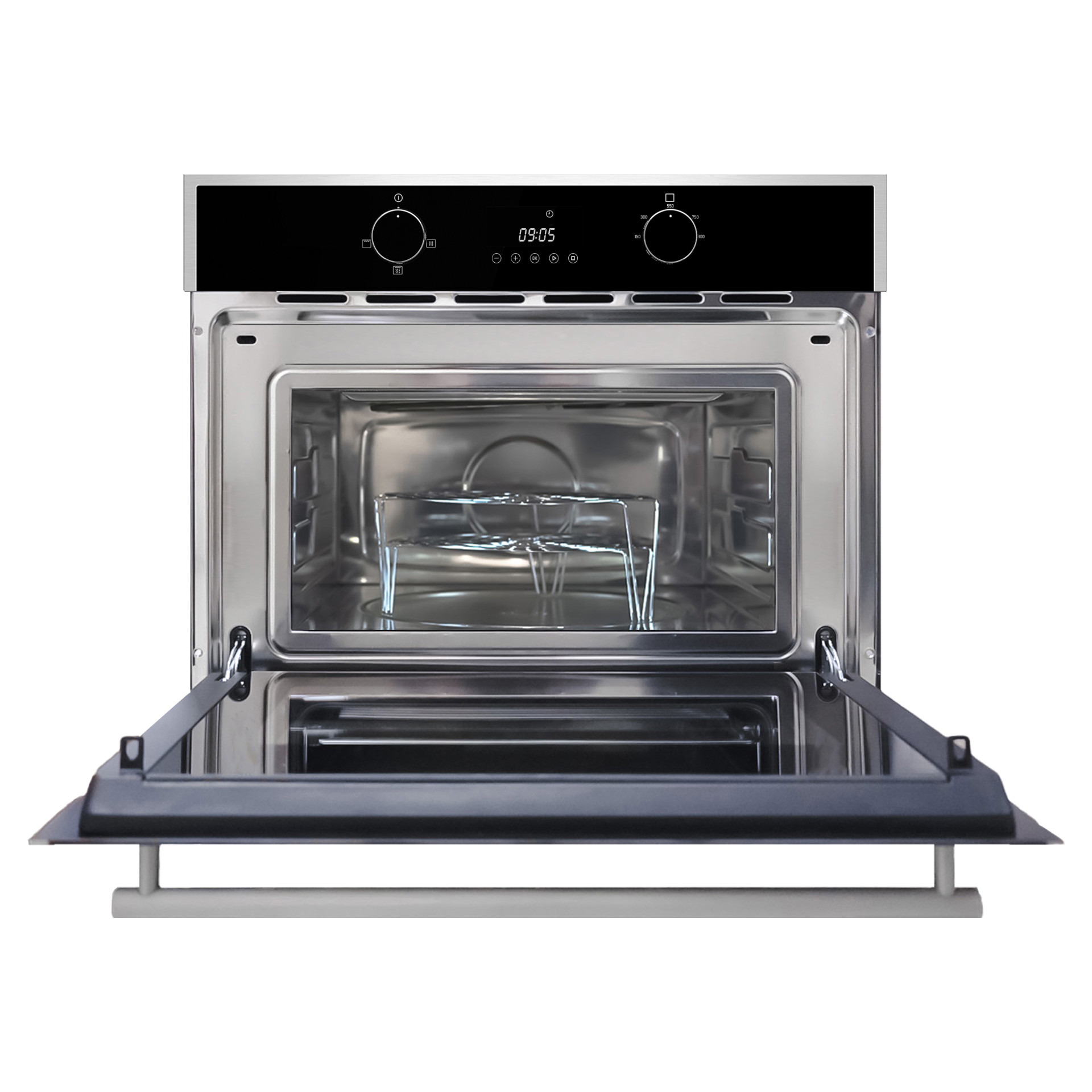

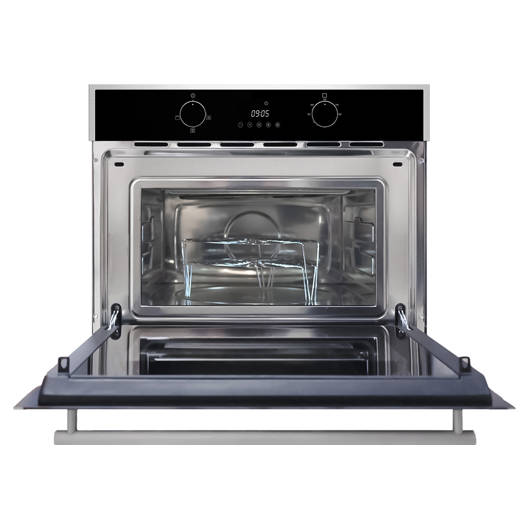

Stainless Steel Interior

The stainless steel cavity provides a durable, easy-to-clean surface. An interior halogen light makes it easy to monitor food while it cooks.

The turntable helps ensure even cooking, while the two included racks let you adjust the height of food when using the grill.

Included Accessories

• Circular turntable
• High grill rack
• Low grill rack

Key Features

• 24 in compact built-in microwave
• 1.3 cu. ft. (38 L) interior capacity
• Microwave, grill and microwave + grill functions
• 1,000 W microwave power
• 1,500 W grill
• Stainless steel interior
• Turntable
• Rotary and touch controls
• Digital display
• Quick-start function
• Pause function
• Digital clock and timer
• Halogen interior lighting
• Removable drop-down door
• Child safety lock
• Optional built-in trim kit available

Technical Specifications

• Model: MWPS60TM-1
• Type: Compact built-in electric microwave with grill
• Capacity: 1.3 cu. ft. (38 L)
• Microwave power: 1,000 W
• Grill power: 1,500 W
• Electrical supply: 208–240 V / 60 Hz
• Required circuit: 20 A
• 5 ft power cable included
• Hardwired electrical installation required
• Weight: 78 lb (35 kg)

Dimensions and Installation

• Width: 23 7/16 in (595 mm)
• Height: 17 15/16 in (455 mm)
• Depth: 20 7/16 in (519 mm)
• Cutout width: 22 3/8 in (568 mm)
• Minimum cutout height: 17 5/8 in (447 mm)
• Cutout depth: 21 5/8 in (549 mm)

Installation Options

A two-piece trim kit is sold separately for certain installation configurations. Compatible trim kit models are TK455 and TK455GLASS.

Please note: This microwave must be connected directly to the electrical circuit and requires a 208–240 V power supply on a 20 A circuit. Cutout dimensions, clearances and electrical requirements should be verified in the installation guide before preparing the cabinetry.
