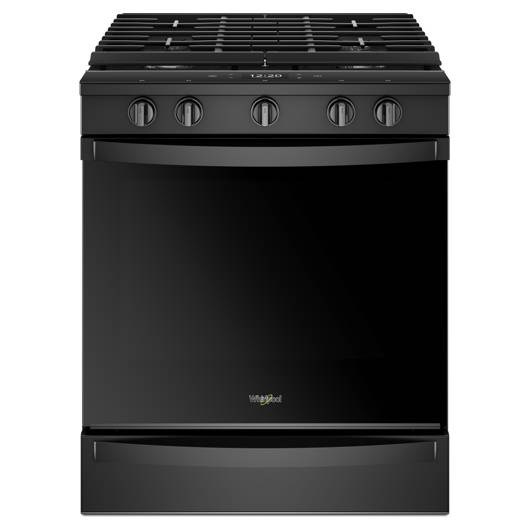

Whirlpool 30 in. Gas Range with True Convection and 5.8 cu. ft. Smart Oven
Enjoy a versatile cooking experience with the Whirlpool WEG750H0HB 30 in. gas range. Featuring five burners, including a powerful 17,000 BTU/h SpeedHeat burner, and a spacious 5.8 cu. ft. oven with True Convection, it allows you to prepare a wide variety of recipes with precision.
Frozen Bake, FlexHeat and AquaLift technologies simplify everyday cooking and cleaning, while the touchscreen and Wi-Fi connectivity provide access to smart features, including multi-step cooking and air frying when the appliance is connected.

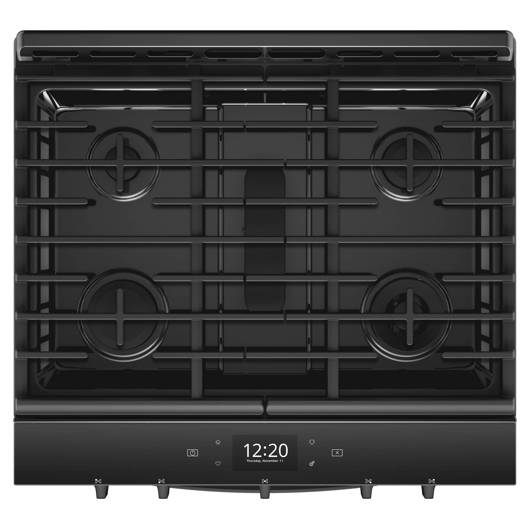

Five-Burner Gas Cooktop
The cooktop features five sealed gas burners with different heat outputs to accommodate the needs of every recipe. From gentle simmering to high-temperature cooking, it allows you to prepare several dishes simultaneously.
- Five sealed gas burners.
- 17,000 BTU/h SpeedHeat front-left burner.
- 13,000 BTU/h FlexHeat front-right burner.
- 5,000 BTU/h rear-left simmer burner.
- 9,500 BTU/h rear-right burner.
- 10,000 BTU/h centre oval burner.
- Total cooktop burner output of 54,500 BTU/h with natural gas.
- Individual rotary control knobs.
17,000 BTU/h SpeedHeat Burner
The SpeedHeat burner delivers high heat for recipes requiring a rapid temperature increase. It is particularly suitable for boiling water, searing meats, and cooking with large pots and pans.
- 17,000 BTU/h output.
- Located at the front left.
- Designed for high-temperature cooking.
- Brings liquids to a boil quickly.
- Adjustable flame intensity.
FlexHeat Dual-Flame Burner
The FlexHeat burner features two rings of flames to adjust the heat for different cooking needs. It delivers high heat for searing and boiling while offering lower settings for more delicate recipes.
- 13,000 BTU/h front-right burner.
- FlexHeat dual-flame ring technology.
- Heat distribution suited to different cookware.
- Suitable for boiling, searing, and gentle cooking.
- Heat adjustment using a rotary control knob.
Centre Oval Burner and Included Griddle
The 10,000 BTU/h oval burner is designed to heat elongated cookware and the included griddle. It is ideal for preparing pancakes, grilled sandwiches, vegetables, and various recipes requiring a large heated cooking surface.
- 10,000 BTU/h centre oval burner.
- Suitable for griddles and elongated cookware.
- Removable griddle included.
- Allows you to prepare multiple servings simultaneously.
- Versatile cooking surface for various recipes.

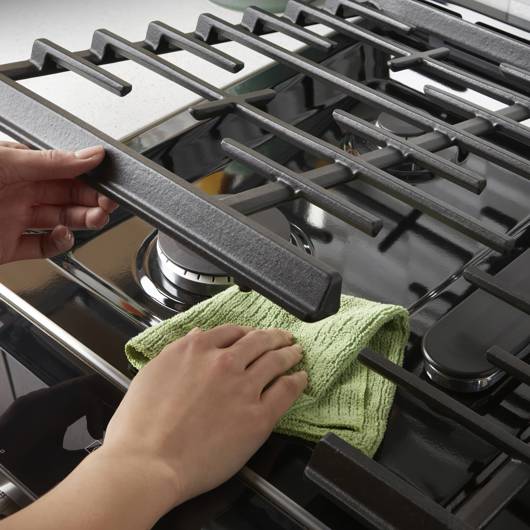

EZ-2-Lift Hinged Cast-Iron Grates
The EZ-2-Lift grates feature hinges that allow them to be lifted for easy access to the cooktop surface beneath the burners. Their cast-iron construction provides a stable surface for pots and pans, while the continuous design makes it easy to move cookware across the cooktop.
- Two EZ-2-Lift hinged grates.
- Cast-iron construction with protective coating.
- Continuous grates covering the cooktop.
- Hinged design allows grates to be lifted for cleaning.
- Removable, dishwasher-safe grates.
- Design simplifies cleaning around the burners.

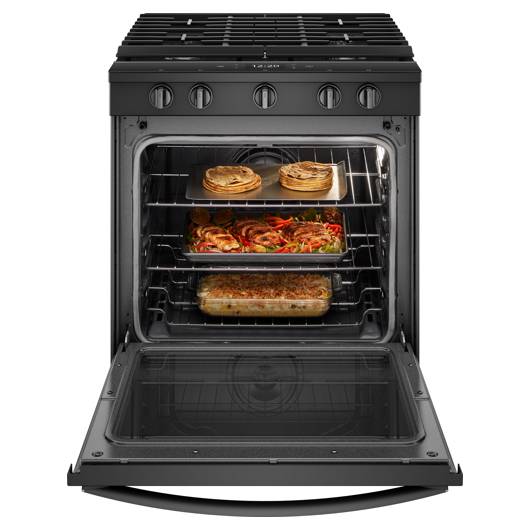

Spacious 5.8 cu. ft. Oven
The 5.8 cu. ft. oven provides ample space for cooking large dishes and using multiple racks. Its large viewing window allows you to monitor food without repeatedly opening the oven door.
- 5.8 cu. ft. oven capacity.
- Conventional and convection cooking.
- Three oven racks included.
- Seven rack positions.
- Large oven door window.
- Incandescent interior lighting.
- Hidden lower bake element.
- Lower storage drawer.
True Convection with 900 W Third Heating Element
The True Convection system combines a rear fan with a dedicated 900 W third electric heating element. This configuration promotes even distribution of hot air throughout the oven cavity, allowing consistent cooking results on multiple racks.
- True Convection with a third heating element.
- 900 W electric convection element.
- Rear fan circulates hot air throughout the oven.
- Convection bake, roast, and broil modes.
- Even heat distribution.
- Ideal for baking, roasting meats, and cooking on multiple racks.
- Automatic temperature conversion for traditional recipes using convection.
Air Fry with Wi-Fi Connectivity
Air Fry mode allows you to prepare a variety of crispy foods directly in the oven using hot air circulation. This feature is available when the range is connected and the corresponding software update is available.
- Air Fry cooking function.
- Available when the appliance is connected.
- Hot air circulation around food.
- Suitable for French fries, chicken wings, nuggets, and other dishes.
- Produces crispy results with less oil than traditional deep frying.
- Compatible air fry basket sold separately.
- Wi-Fi connection and compatible software features required.
Frozen Bake Technology Without Preheating
Frozen Bake technology allows you to cook certain frozen foods using preset programs without traditional preheating. The oven automatically adjusts cooking settings based on the selected program.
- Frozen Bake technology.
- Preset programs for select frozen foods.
- No preheating required for compatible recipes.
- Automatic cooking time adjustments.
- Suitable for certain frozen pizzas and other frozen foods.
Smart Multi-Step Cooking
The Multi-Step Cooking feature allows you to program different cooking stages for a single recipe. Using the Whirlpool app, you can send multiple instructions to the oven so it automatically adjusts its settings throughout the cooking process.
- Multi-Step Cooking feature.
- Programmable cooking stages.
- Automatic temperature adjustments based on programmed instructions.
- Operates with the Whirlpool app.
- Wi-Fi connection required.
- Designed to simplify recipes requiring multiple consecutive settings.

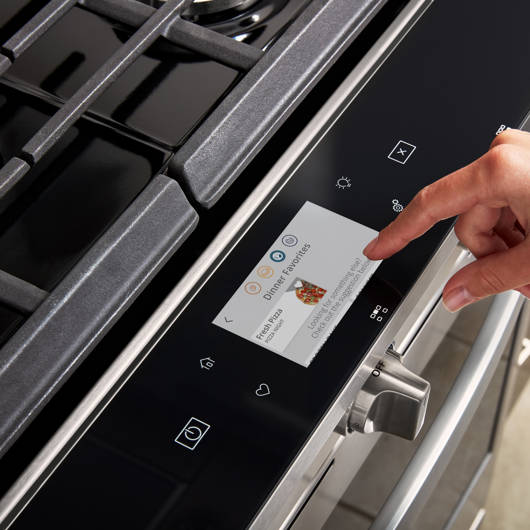

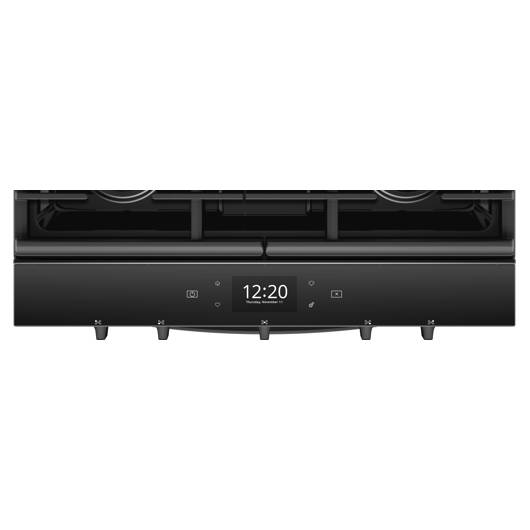

Touchscreen and Personalized Controls
The oven's touchscreen provides direct access to cooking functions and commonly used settings. It can also offer personalized settings based on your cooking habits, making everyday meal preparation easier.
- Electronic touchscreen.
- Front-mounted oven controls.
- Quick access to cooking modes.
- Personalized presets.
- Time and temperature display.
- Built-in timer.
- Control lock.

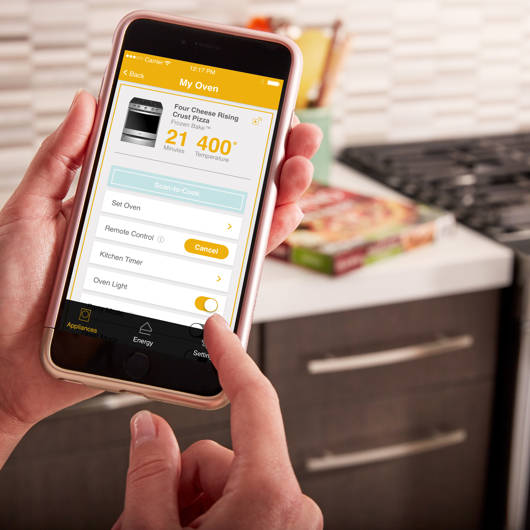

Wi-Fi Connectivity and Remote Control
Wi-Fi connectivity allows you to connect the range to the Whirlpool app to monitor certain functions and access remote controls. Available features include remote start, notifications, and select automatic updates.
- Built-in Wi-Fi connectivity.
- Whirlpool app for smartphones and tablets.
- Remote start feature after the required permissions have been enabled.
- Monitoring of select oven functions.
- Cooking notifications.
- Automatic updates for compatible features.
- Voice control with compatible Google Assistant devices.
- Party Mode allows you to activate Keep Warm remotely.
- Assistance with diagnosing certain issues.
Rapid Preheat and Precise Cooking
The Rapid Preheat feature uses the oven's heating system and air circulation to reduce the time required to reach the selected temperature. A sensor also monitors the interior temperature to help maintain consistent cooking conditions.
- Rapid Preheat feature.
- Up to 20% faster preheating, depending on cooking conditions.
- Built-in oven temperature sensor.
- Automatic heating adjustments to maintain the selected temperature.
- Keep Warm function.
AquaLift Cleaning in Approximately 40 Minutes
AquaLift technology helps remove light oven residue using water and moderate heat. The cycle takes approximately 40 minutes and makes it easier to wipe away dirt afterward without the high temperatures associated with traditional self-cleaning ovens.
- AquaLift cleaning technology.
- Approximately 40-minute cycle.
- Uses water and moderate heat for cleaning.
- No chemical cleaners required during the cycle.
- Residue must be wiped away manually after cleaning.
- Different from traditional high-temperature pyrolytic self-cleaning.
Technical Specifications
- Brand: Whirlpool.
- Model: WEG750H0HB.
- Type: Slide-in gas range.
- Nominal width: 30 inches.
- Oven capacity: 5.8 cu. ft.
- Number of ovens: 1.
- Number of burners: 5.
- Burner type: Sealed.
- Front-left burner: SpeedHeat, 17,000 BTU/h.
- Rear-left burner: Simmer, 5,000 BTU/h.
- Front-right burner: FlexHeat dual-flame, 13,000 BTU/h.
- Rear-right burner: 9,500 BTU/h.
- Centre oval burner: 10,000 BTU/h.
- Total burner output: 54,500 BTU/h.
- Cooktop grates: 2 hinged EZ-2-Lift cast-iron grates.
- Dishwasher-safe grates: Yes.
- Removable griddle: Included.
- Burner controls: Rotary knobs.
- Oven controls: Electronic touchscreen.
- Oven bake burner output: 18,000 BTU/h.
- Broil burner output: 11,000 BTU/h.
- True Convection: Yes.
- Third electric convection element: 900 W.
- Convection modes: Bake, roast, and broil.
- Automatic convection temperature conversion: Yes.
- Air Fry: Yes, when connected and updated.
- Frozen Bake technology: Yes.
- Rapid Preheat: Yes.
- Oven temperature sensor: Yes.
- Keep Warm: Yes.
- Oven cleaning system: AquaLift.
- AquaLift cycle duration: Approximately 40 minutes.
- Number of oven racks: 3.
- Number of rack positions: 7.
- Rack types: 2 standard and 1 maximum-capacity rack.
- Interior lighting: Incandescent.
- Lower bake element: Hidden.
- Lower drawer: Storage.
- Wi-Fi connectivity: Yes.
- Compatible app: Whirlpool.
- Remote start: Yes, subject to activation requirements.
- Google Assistant compatibility: Yes.
- Gas supply: Natural gas.
- Propane conversion: Possible according to installation documentation.
- Electrical requirements: 120 V, 60 Hz.
- Exterior width: 29 7/8 inches.
- Exterior height: 36 inches.
- Exterior depth with handle: 28 5/8 inches.
- Depth without handle: 27 inches.
- Depth with door open at 90°: 48 7/8 inches.
- Limited warranty: 1 year on parts and labour, subject to manufacturer's terms and conditions.
Interior Oven Dimensions
- Interior width: 24 3/8 inches.
- Interior height: 20 inches.
- Interior depth: 20 3/4 inches.
- Capacity: 5.8 cu. ft.

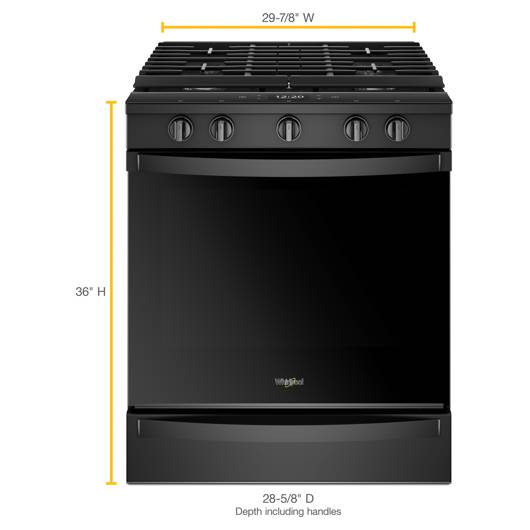

Installation Dimensions and Requirements
- Appliance width: 29 7/8 inches.
- Appliance height: 36 inches.
- Depth with handle: 28 5/8 inches.
- Nominal opening width: 30 inches.
- Nominal opening height: 36 inches.
- Reference opening depth: 24 inches.
- Connection to an appropriate gas supply.
- 120 V, 60 Hz electrical supply.
- Mandatory installation of the anti-tip device.
- Compliance with specified clearances around cabinetry and combustible materials.
- Installation and propane conversion must be performed by a qualified professional.
Please Note: The Air Fry feature requires a Wi-Fi connection and availability of the corresponding software functionality. The air fry basket is sold separately. AquaLift technology uses a water-based cleaning cycle and should not be confused with traditional high-temperature self-cleaning.
