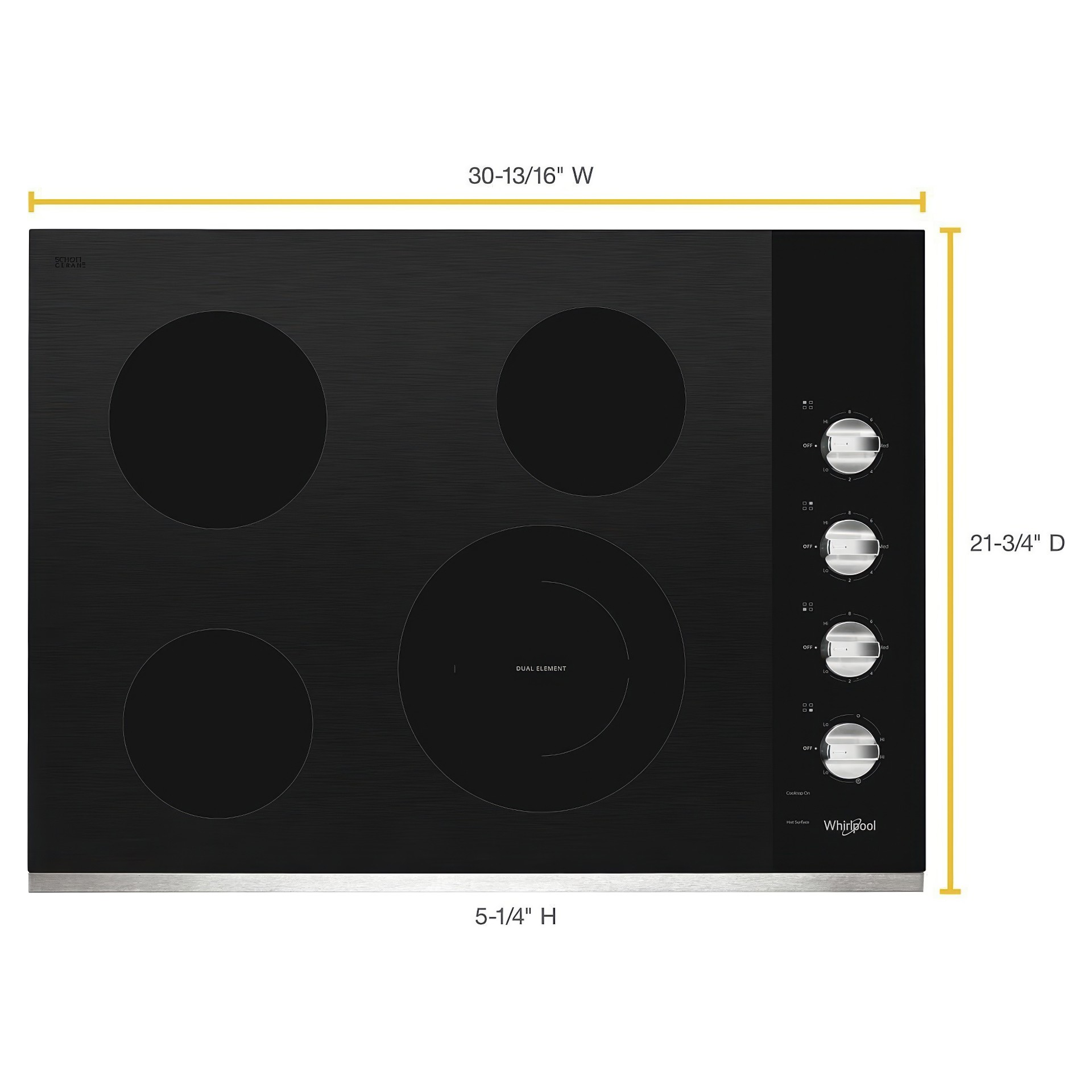

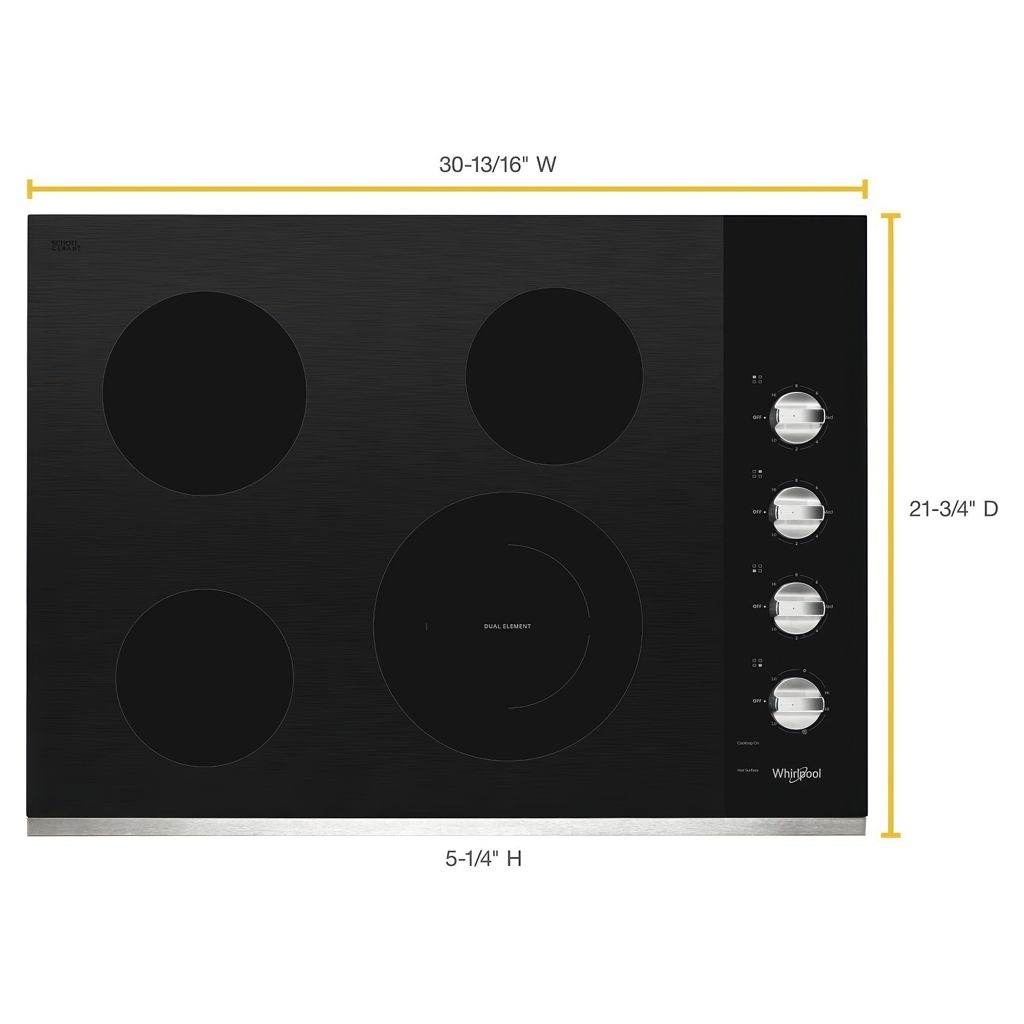

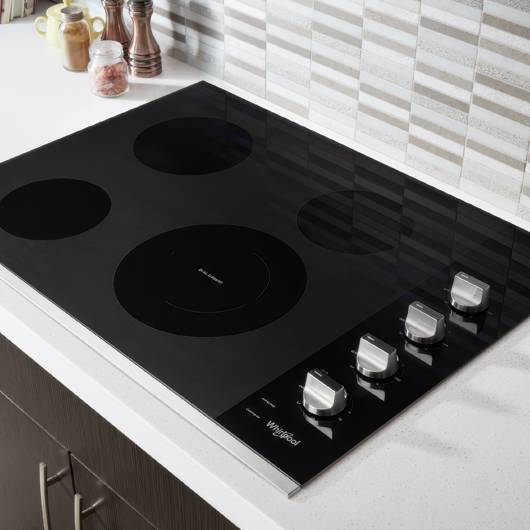

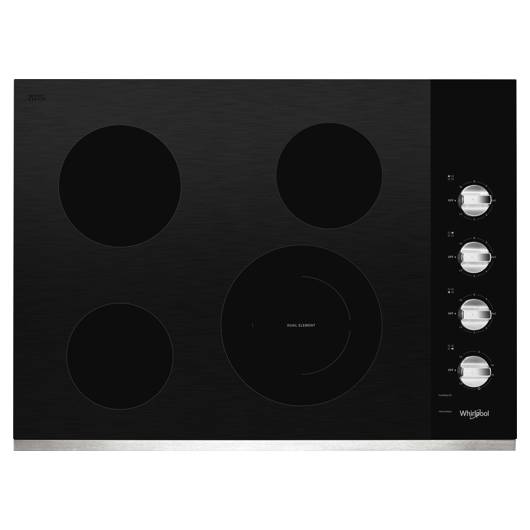

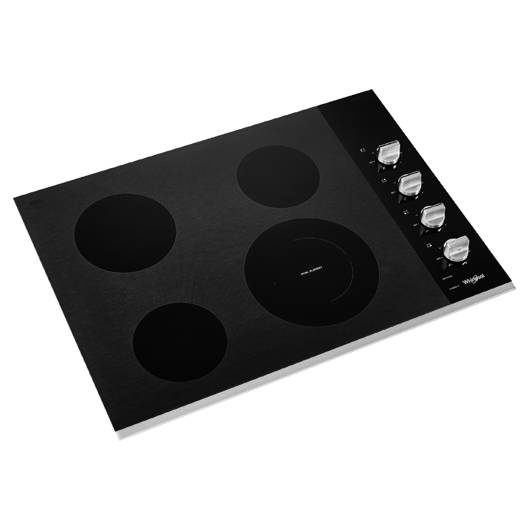

This 30-inch electric cooktop features four radiant elements in a compact design ideal for kitchens where space is limited. It allows you to prepare multiple dishes at once while providing a cooking surface that integrates seamlessly into the countertop.
FlexHeat™ Dual Element

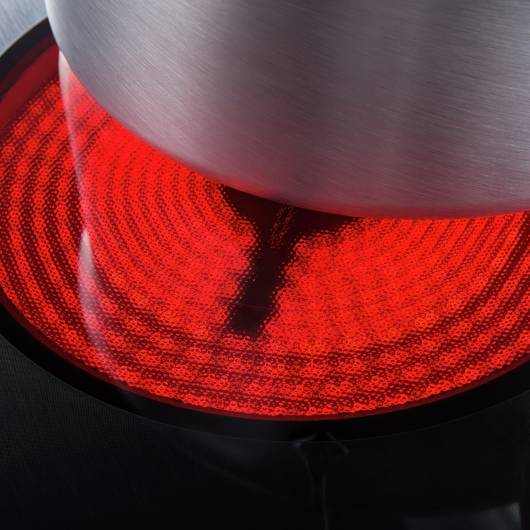

The front right FlexHeat™ element combines two cooking zones in one. Its 6-inch inner ring is ideal for smaller pots and pans, while the 10-inch outer ring accommodates larger cookware.
With up to 2,500 watts of power, this versatile element easily handles everything from simmering sauces to high-heat cooking.
Four Elements for Simultaneous Cooking
The cooktop includes a 6-inch, 1,200-watt front left element, an 8-inch, 1,800-watt rear left element, a dual 6-inch/10-inch, 2,500-watt front right element, and a 6-inch, 1,200-watt rear right element.
This configuration makes it easy to prepare multiple dishes at the same time, even in smaller kitchens.
Easy-to-Clean Glass Surface
The smooth black glass surface provides a sleek appearance while making cleanup simple. Spills can be wiped away once the surface has cooled.
A hot surface indicator lets you know when an element remains hot after use, while a separate indicator shows when an element is in operation.

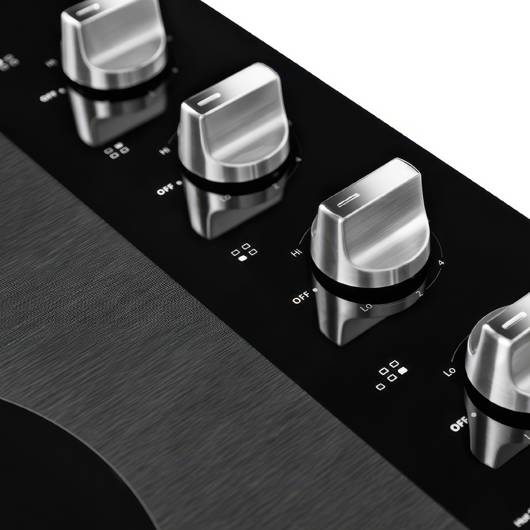

Simple, Convenient Controls
Right-side control knobs provide easy access to all four cooking elements. The black plastic knobs are dishwasher safe for added convenience.
Flexible Installation

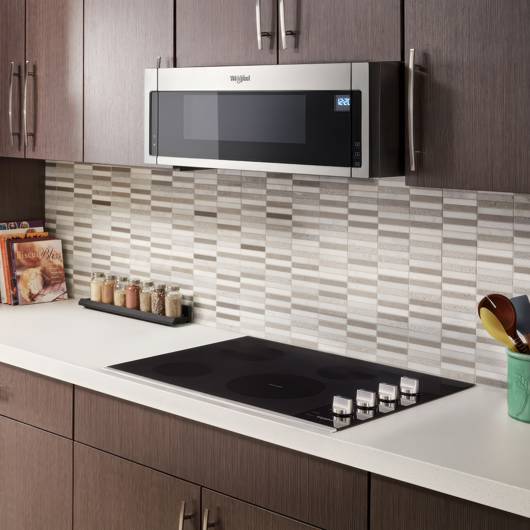

The cooktop can be installed on its own or above select compatible Whirlpool wall ovens. It supports either a 30-amp or 40-amp electrical connection, making it easier to integrate into a variety of kitchen installations.
A power cord is included.
Energy Efficiency
This model is ENERGY STAR® certified and meets ADA requirements for countertop height as well as front and side accessibility.
Features
- 30-inch electric cooktop
- Four radiant cooking elements
- FlexHeat™ dual element (6 in./10 in., 2,500 W)
- 8-inch radiant element (1,800 W)
- Smooth black glass cooking surface
- Hot surface and element-on indicator lights
- Compatible with select Whirlpool wall ovens
- 30-amp or 40-amp electrical connection
- ENERGY STAR® certified
- ADA compliant
Element Ratings
- Front Left: 1,200 W, 6 in.
- Rear Left: 1,800 W, 8 in.
- Front Right: 1,800 W or 2,500 W, 6 in. or 10 in.
- Rear Right: 1,200 W, 6 in.
Electrical
- Voltage: 240 V
- Compatible with 208 V electrical supply
- Current: 30 A
- Frequency: 60 Hz
- Power cord included
